CAD Drawings For Download
Download DWG files for our most popular flooring patterns and sizes, including Herringbone, Chevron, Plank, Basket Weave, and Parquet Panels. These outline CAD drawings can be imported into floor plans to check scale, layout, and suitability.

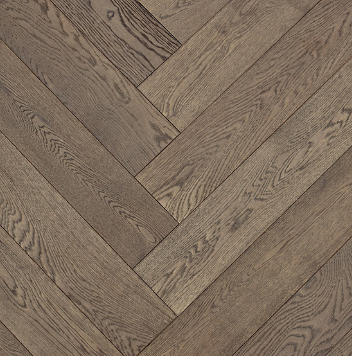

Herringbone
Classic and versatile, our herringbone blocks are available in a range of sizes to suit traditional and contemporary layouts.
14 Download(s)
70 x 350
90 x 450
100 x 500
100 x 600
120 x 600
128 x 615
70 x 350
90 x 450
90 x 520
100 x 500
100 x 600
120 x 600
128 x 615
228 x 1524

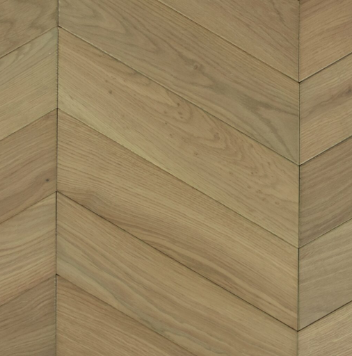

Chevron
Precision-cut at a 60° angle, our chevron boards create a striking directional pattern ideal for statement flooring.
9 Download(s)
70 x 350 with 60 degree angle
90 x 450 with 60 degree angle
90 x 520
120 x 600 with 60 degree angle
70 x 350
90 x 350
90 x 450
90 x 520
120 x 600

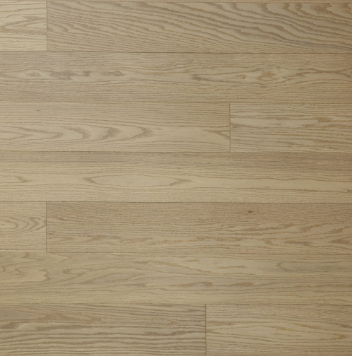

Plank
Available in fixed and random lengths, our engineered planks offer a timeless look with flexibility for any room size.
18 Download(s)
90 x random length 600 to 1400 long (random lengths will have pieces 600 800 1200 and 1400mm long
100 x random length 600 to 1400 long
120 x random length 600 to 1400 long
125 x random length 600 to 1400 long
150 x 1900
190 x 1900
228 x 1524
240 x 1900
260 x 2200
90 x random length 600 to 1400 long (random lengths will have pieces 600 800 1200 and 1400mm long
100 x random length 600 to 1400 long
120 x random length 600 to 1400 long
125 x random length 600 to 1400 long
150 x 1900
190 x 1900
228 x 1524
240 x 1900
260 x 2200

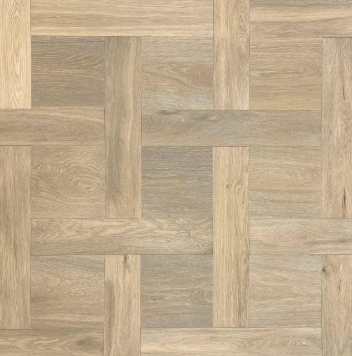

Herringbone Basket Weave
This decorative pattern adds depth and visual interest, perfect for creating a bold, elegant feature.
3 Download(s)

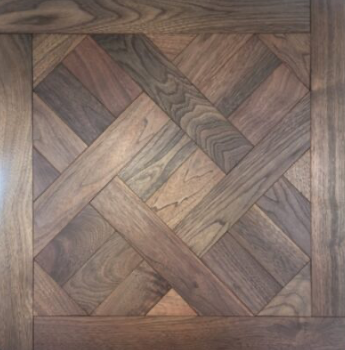

Parquet Panels
Pre-assembled parquet panels offer a sophisticated, large-format design solution for premium spaces.
2 Download(s)
800 x 800
1000 x 1000
Weave Parquet Panels
Create the famous Mansion House Weave parquet pattern using our simple pre-cut modular system.
Sizes:
Hexagon = 15x90x130.8mm (spans 275mm)
Staves = 15×63.7×184.4mm (45 degree joint on one edge)
1 Download(s)
